eyevinn-channel-engine

OTT TV Channel Engine

Usage no npm install needed!

<script type="module">
  import eyevinnChannelEngine from 'https://cdn.skypack.dev/eyevinn-channel-engine';
</script>

README

The Eyevinn Channel Engine is an NPM library that provides the functionality to generate "fake" live HLS stream by stitching HLS VOD's together. The library is provided as open source and this repository includes a basic reference implementation as a guide on how the library can be used.

Usage

To use this library in your NodeJS project download and install the library in your project by running the following in your project folder.

$ npm install --save eyevinn-channel-engine

To run the basic reference implementation included in this repository you run:

$ npm start

And to run the basic reference implementation for using demuxed VODs you run:

$ npm run start-demux

Then point your HLS video player to http://localhost:8000/live/master.m3u8?channel=1 to start playing the linear live stream.

Master manifest filtering

The engine supports a very simplistic and basic filtering of media playlists included in the master manifest. Currently supports to filter on video bandwidth and video height. To specify a filter provide the query parameter filter when loading the master manifest, e.g. (type=="video"&&height>200)&&(type=="video"&&height<400). This needs to be URL encoded resulting in the following URL: http://localhost:8000/live/master.m3u8?channel=1&filter=%28type%3D%3D%22video%22%26%26height%3E200%29%26%26%28type%3D%3D%22video%22%26%26height%3C400%29

API

Initiate and start the engine as below.

const ChannelEngine = require('eyevinn-channel-engine');

const engine = new ChannelEngine(myAssetManager, { channelManager: myChannelManager });
engine.start();
engine.listen(process.env.port || 8000);

where myAssetManager and myChannelManager are classes implementing the interfaces below.

class MyAssetManager {
  getNextVod({ sessionId, category, playlistId }) -> { id, title, uri, offset, timedMetadata? }
  handleError(err, vodResponse)
}

class MyChannelManager {
  getChannels() -> [ { id, name, slate?, closedCaptions?, profile?, audioTracks?, options? } ]
}

Find a simplistic reference implementation for guidance in ./server.js.

Enabling Demuxed Audio

LIMITATIONS: At the moment, only supported for assets with matching audio track GROUP-IDs. Assets with different GROUP-IDs on their tracks will not be loaded correctly when transitioning between them, resulting in buffer errors. (This will be fixed).

To support playing assets with multiple audio tracks, a list of supported languages needs to be pre-defined. Assign to the audioTracks property, in the return object for the channel manager class's getChannels() function, a list of objects in the following format

{
  language: { type: string } ,
  name:  { type: string },
  default: { type: bool } // optional
}

Example value for audioTracks:

audioTracks = [ { language: "en", name: "English", default: true }, { language: "es", name: "Español" } ];

NOTE: In the case where an asset does not have a track in a language found in the pre-defined list, then the asset's default track will be played in its place.

Find a simplistic reference implementation for guidance about using demuxed VODs in ./server-demux.js.

Options

Available options when constructing the Channel Engine object are:

  • defaultSlateUri: URI to an HLS VOD that can be inserted when a VOD for some reason cannot be loaded.
  • slateRepetitions: Number of times the slate should be repeated.
  • redisUrl: A Redis DB URL for storing states that can be shared between nodes.
  • memcachedUrl: A Memcached URL for storing states that can be shared between nodes.
  • sharedStoreCacheTTL: How long should data be cached in memory before writing to shared store. Default is 1000 ms.
  • heartbeat: Path for heartbeat requests
  • channelManager: A reference to a channel manager object.
  • cacheTTL: Sets the cache-control header TTL. Default is 4 sec.
  • playheadDiffThreshold: Sets the threshold when starting to adjust tick interval to compensate for playhead drift.
  • maxTickInterval: The maximum interval for playhead tick interval. Default is 10000 ms.
  • cloudWatchMetrics: Output CloudWatch JSON metrics on console log. Default is false.
  • useDemuxedAudio: Enable playing VODs with multiple audio tracks. Default is false.

High Availability (BETA)

As the engine is not a stateless microservice accomplish high availablity and redundancy is not a trivial task, and requires a shared cache cluster (also redundant) to store current state.

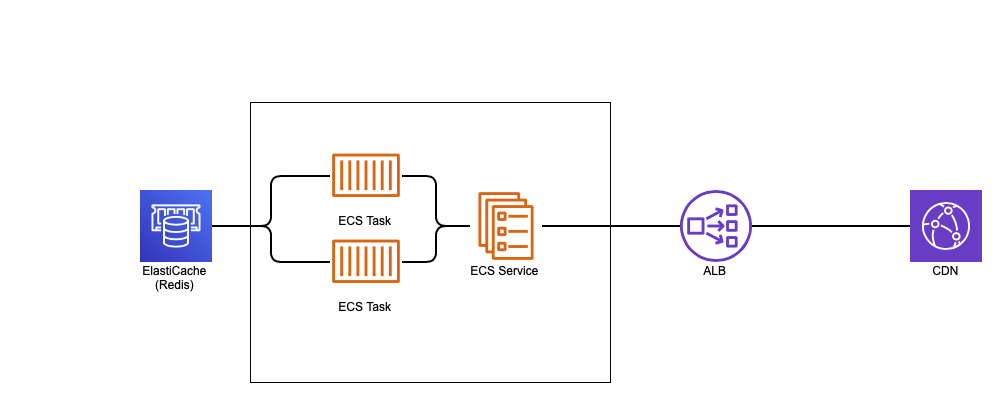

High-level drawing of High Availability

A beta-version of high availability support is available in the Channel Engine and it uses Redis as the shared storage. This allows you to run a replicaset behind a round-robin load balancer as examplified in the drawing above. To enable high-availability initiate the engine with the URL to the Redis cache.

const engineOptions = {
  heartbeat: '/',
  averageSegmentDuration: 2000,
  channelManager: refChannelManager,
  defaultSlateUri: "https://maitv-vod.lab.eyevinn.technology/slate-consuo.mp4/master.m3u8",
  slateRepetitions: 10,
  redisUrl: "redis://127.0.0.1",
};

const engine = new ChannelEngine(refAssetManager, engineOptions);
engine.start();
engine.listen(process.env.port || 8000);

Note that this feature is currently in beta which means that it is close to production-ready but has not been run in production yet. We appreciate all efforts to try this out and provide feedback.

Demo

Visit Consuo for a demonstration of this concept. A demo and proof-of-concept built on top of this library.

If you want help to get started to build a service of your own based on this library you can hire an Eyevinn Video-Dev Team to help you out.
