README
Assuming you would like to capture p5.js animations super easily, this package is the right choice for you.
Why p5.capture?
Stable recording ๐ฉ
Recording p5.js animations with a screen recording tool often causes performance issues.
This is because the recording timing is out of sync with the rendering timing.
p5.capture hooks into the draw
function of p5.js to perform the recording task, so it works like magic.
Keep your sketches clean โจ
Adding recording functionality to a sketch can be very tedious. A sketch messed up with recording code becomes less visible and harder to change. p5.capture provides a minimalistic GUI by default, designed to add recording functionality without messing up your sketch. Let's focus on your creative coding. Of course, you can also use the API to integrate it into your code.
Wide variety of export formats ๐คน
Tired of having to use different libraries for different formats? p5.capture supports a wide variety of export formats: WebM, GIF, PNG, JPEG, and WebP. Say goodbye to having to use multiple libraries for recording.
Installation
Add a link after p5.js in your html file:
<script src="https://cdn.jsdelivr.net/npm/p5"></script>
<script src="https://cdn.jsdelivr.net/npm/p5.capture"></script>
Or install with npm:
npm install p5.capture
Usage

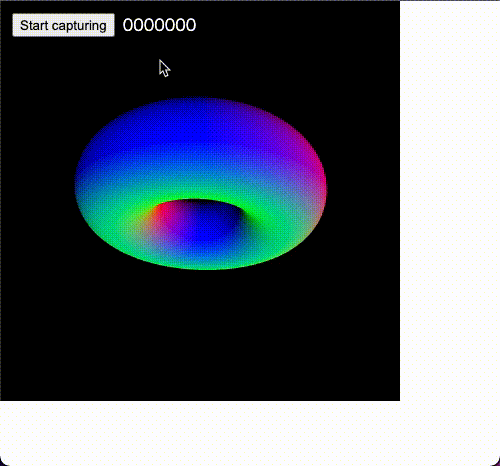

Basically, the capture is controlled by the GUI.
That's all ๐
This is useful for capturing interactively.
Export formats
p5.capture supports multiple export formats:
- WebM (default): export WebM video using MediaRecorder API
- GIF: export animated GIF using gif.js
- PNG: export PNG images in a ZIP file
- JPEG: export JPEG images in a ZIP file
- WebP: export WebP images in a ZIP file
API
You can also use functions to control the capture programmatically.
Functions | Description |
---|---|
startCapturing(options) |
Start capturing |
stopCapturing() |
Stop capturing |
captureState() |
Returns the capture status as a string of "idle" , "capturing" , or "encoding" . |
The following example captures the first 100 frames:
function setup() {
createCanvas(400, 400, WEBGL);
}
function draw() {
if (frameCount === 1) {
startCapturing({
format: "gif",
duration: 100,
verbose: true,
});
}
background(0);
normalMaterial();
rotateX(frameCount * 0.01);
rotateY(frameCount * 0.015);
torus(width * 0.2, width * 0.1, 64, 64);
}
Options
Name | Default | Description |
---|---|---|
format | "webm" |
export format. "webm" , "gif" , "png" , "jpg" , and "webp" |
recorderOptions | {} |
see Recorder options |
duration | null |
maximum capture duration in number of frames |
verbose | false |
dumps info on the console |
disableUi | false |
(only global variable options) hides the UI |
disableScaling | false |
(only global variable options) disables pixel scaling for high pixel density displays |
There are two ways to pass the options object.
- the global variable
P5_CAPTURE_OPTIONS
- the argument of
startCapturing(options)
// global variable
P5_CAPTURE_OPTIONS = {
format: "png",
verbose: true,
}
// or argument of startCapturing()
startCapturing({
format: "png",
verbose: true,
})
Recorder options
Depends on the format.
WebM
Name | Default | Description |
---|---|---|
mediaRecorderOptions | see Default mediaRecorderOptions | MediaRecorder options |
Example of using the vp9 codec:
P5_CAPTURE_OPTIONS = {
format: "webm",
recorderOptions: {
mediaRecorderOptions: {
mimeType: "video/webm;codecs=vp9",
},
},
};
Default mediaRecorderOptions
videoBitsPerSecond
:1024 * 1024 * 20
(20Mbps)
mediaRecorderOptions
properties will be merged appropriately.
GIF
Name | Default | Description |
---|---|---|
frameRate | 60 |
target framerate for the capture |
gifOptions | see Default gifOptions | gif.js options |
Example of setting quality:
P5_CAPTURE_OPTIONS = {
format: "gif",
recorderOptions: {
gifOptions: {
quality: 5,
},
},
};
Default gifOptions
workers
:4
workerScript
: Importgif.worker.js
from CDN
gifOptions
properties will be merged appropriately.
PNG
No options available.
JPEG
Name | Default | Description |
---|---|---|
quality | 0.92 |
image quality (a number between 0 and 1 ) |
Example of setting quality:
P5_CAPTURE_OPTIONS = {
format: "jpg",
recorderOptions: {
quality: 0.95
},
};
WebP
Name | Default | Description |
---|---|---|
quality | 0.8 |
image quality (a number between 0 and 1 ) |
Example of setting quality:
P5_CAPTURE_OPTIONS = {
format: "webp",
recorderOptions: {
quality: 0.85
},
};
Limitations
p5.capture currently only supports p5.js global mode.
